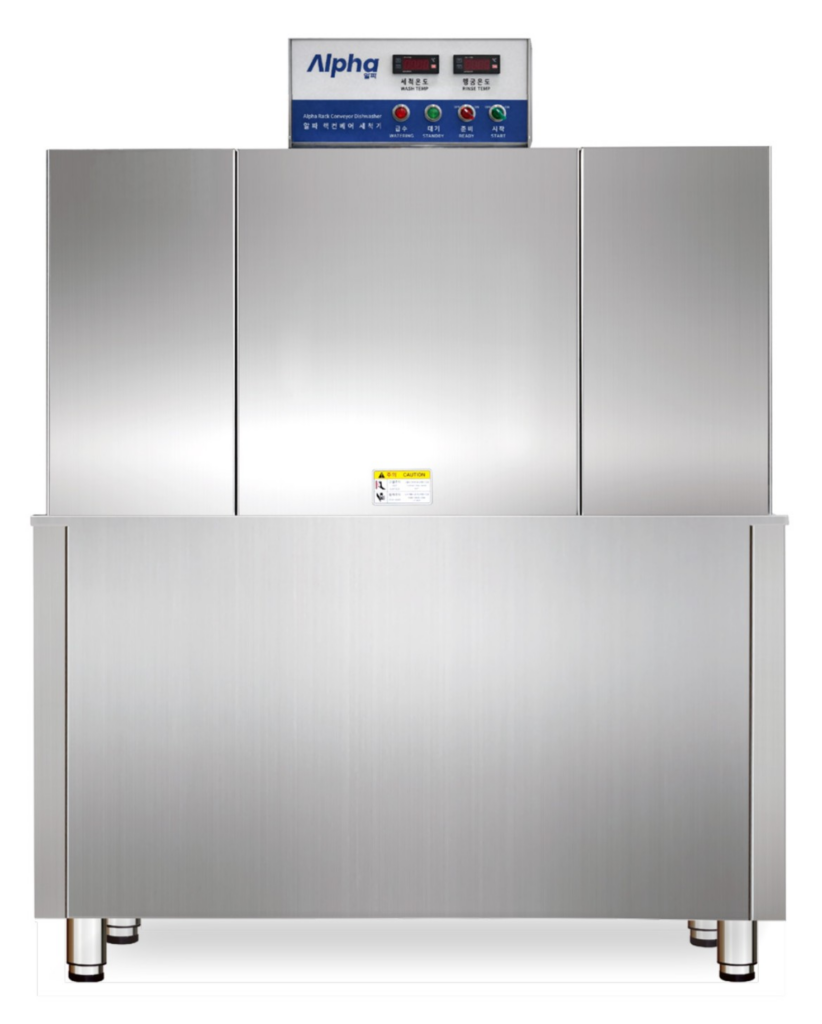

AR-100 / AR-200
Rack conveyor type
High-efficiency rack conveyor — up to 240 racks/hour for large kitchens
Key features
Easy gas booster
Simple to fit a gas booster on top of the unit.
Fully-opening door
Opens fully for easy cleaning and servicing.
High-efficiency pump
Top cleaning power from a high-efficiency pump.
Specifications
| Specification | AR-100 | AR-200 |
|---|---|---|
| Dimensions | 1160(W) × 700(L) × 1600(H) | 1860(W) × 700(L) × 1600(H) |
| Wash tank | 80 L | 80 L × 2 tanks |
| Wash heater | 5 kW | 5 kW |
| Wash pump | 1.5 kW | 1.5 kW × 2 tanks |
| Drive motor | 0.2 kW | 0.2 kW |
| Rinse pump | 0.2 kW | 0.2 kW |
| Rinse heating | 38,000 kcal gas booster | 40,000 kcal gas booster |
| Wash temp. | 55–60 °C | 55–60 °C |
| Rinse temp. | 50–95 °C | 50–95 °C |
| Conveyor speed | 1.42 m/min | 1.97 m/min |
| Power | 7 kW | 9 kW |
| Voltage | 3-phase 380V (3-wire) | |
| Throughput (per hour) | 180 Rack/h | 240 Rack/h |
Request a quote
For specs, quotations and installation, contact our customer centre.
